| Left/Right Hand Side Minibus |
|
| 系列 | MINIBUS 53.58kwh |
| 最大座位数：（Maximun Seats) | 16 seats |
| 车舵类型 | L/RHD |
车身
Body | 轴距 Wheelbase | 轴距 Wheelbase（mm） | 3110 |
车身尺寸
Vehicle size | L×W（mm） | 5480×1715 |
| H（mm） | ●(2185) |
| 右中滑门 Right center sliding door | — |
| 左中滑门 Left center sliding door | ● |
| 尾门 Tailgate | 上掀门 Lift up the door | ● |
漆面
Paint surface | 车色
Car color | White | ● |
新能源项目
New energy projects | 永磁同步电机(Kw)
Permanent magnet synchronous motor (Kw) | 额定/峰值功率（Kw）
Rated/Peak Power (Kw) | 50/80 |
| Rated/peak torque (Nm) | 130/270 |
| Peak speed (rpm) | 8000 |
| 动力电池 Power battery | 宁德时代53.58kwh磷酸铁锂电池
CATL 53.58kwh lithium iron phosphate battery |
| 电池加热系统 Battery heating system | ● |
| 多合一控制器 Multi in one controller（MCU+PDU+DCDC+6.6Kw OBC） | ● |
充电口
charging port | 快充口（国标）
Fast charging port (national standard) | ● |
慢充口（国标）
Slow charging port (national standard) | ● |
| 16A充电线 16A charging wire | ● |
| 低速报警 Low speed alarm | ● |
| T-BOX | — |
底盘
chassis | 轮圈rim | 铝圈（无备胎）
Aluminum ring (without spare tire) | ● |
| 轮胎规格Tire specifications | 轮胎规格
Tire specifications | 205R15LT |
后悬挂类型
Rear suspension type | 变截面板簧非独立悬挂
Variable section panel spring non independent suspension | ● |
| 后桥rear axle | 直驱桥结构 速比 11.97
Direct drive bridge structure speed ratio 11.97 | ● |
| 转向 Turn system | 电动助力转向
Electric power steering | ● |
| 转向管柱 Steering column | 可溃缩
Collapsible | ● |
| 电源
power supply | 前置副驾驶断电阀
Front passenger power-off valve | ● |
| 手刹
Handbrake | Front
前置 | ● |
车辆电子操纵装置
Vehicle electronic control device | ABS+EBD | 电子式ABS+EBD辅助制动系统
Electronic ABS+EBD auxiliary braking system | ● |
真空助力器
vacuum booster | 制动力加力装置
Braking force boosting device | ● |
乘员安全防护装置
Passenger safety protection device | 驾驶区安全带
Driving area seat belt | 普通三点式
Ordinary three-point formula | ● |
正驾未系报警
Driving in front of the car without fastening the alarm | ● |
乘客区安全带
Passenger area seat belt | 两点式
Two-point formula | ● |
反光背心
Reflective Vest | 反光背心(1件)
Reflective vest (1 piece) | — |
门锁自动上锁
Automatic locking of door lock | 门锁20公里自动上锁
The door lock automatically locks at 20 kilometers | — |
外饰
Exterior Decoration | 车身装饰彩条
Car body decoration color strip | 车身彩条
Car body color strip | — |
前格栅
Front grille | 镀铬
Chrome plating | ● |
后牌照装饰板
Rear license plate decorative panel | 镀铬
Chrome plating | ○ |
喷漆
Spray painting | ● |
车轮前后挡泥板
Front and rear fenders of the wheels | 车轮前后挡泥板
Front and rear fenders of the wheels | ● |
外后视镜
External rearview mirror | 电动后视镜
power mirrors | ● |
手动外后视镜
Manual exterior rearview mirror | ○ |
门把手
Door handle | 镀铬 前门/中门
Chrome plating Front door/middle door | 黑色 |
乘客区玻璃
Passenger area glass | 白玻
White glass | ○ |
隐私玻璃
Privacy glass | ● |
整体玻璃（左前、右前）
Whole glass (left front, right front) | ● |
内嵌式推拉小窗（左后、右后）
Embedded sliding small window (left rear, right rear) | ● |
后雨刮、后洗涤、后除霜
Rear wiper, rear wash, rear defrost | ○ |
| 前大灯 Front Headlight | 前大灯（电调）
Front headlights (electrically adjustable) | ● |
| 后大灯 Rear Headlight | 后组合灯
Rear combination lamp | ● |
| 前雾灯 Front Fog | 前雾灯
Front fog lamp | ● |
高位刹车灯
HIGH MOUNT STOP LAMP | 高位刹车灯
high-mount stop lamp | ● |
内饰
Interior design | 内饰Interior design | 简化内饰（蜂窝板+PVC）
Simplified interior (honeycomb panel+PVC) | ● |
| 内把手Internal handle | 前门内把手
Front door interior handle | 镀铬 |
中门内把手
Inner door handle | 普通 |
| 内饰颜色 Interior color | 灰色系
Grey system | ● |
| 顶棚 Ceiling | 无纺布简易顶棚
Non woven simple ceiling | ● |
乘客区照明灯
Passenger area lighting | 普通后顶灯（2个）
Ordinary rear ceiling lights (2 pieces) | ● |
驾驶区地板铺面
Floor paving in the driving area | PVC+毛毡
PVC+felt | ● |
乘客区地板铺面
Passenger area flooring | 不锈钢地板
Stainless steel flooring | ● |
铝合金地板+竹木地板
Aluminum alloy floor+bamboo wood floor | ○ |
方向盘材质
Steering wheel material | PU软质
PU soft material | ● |

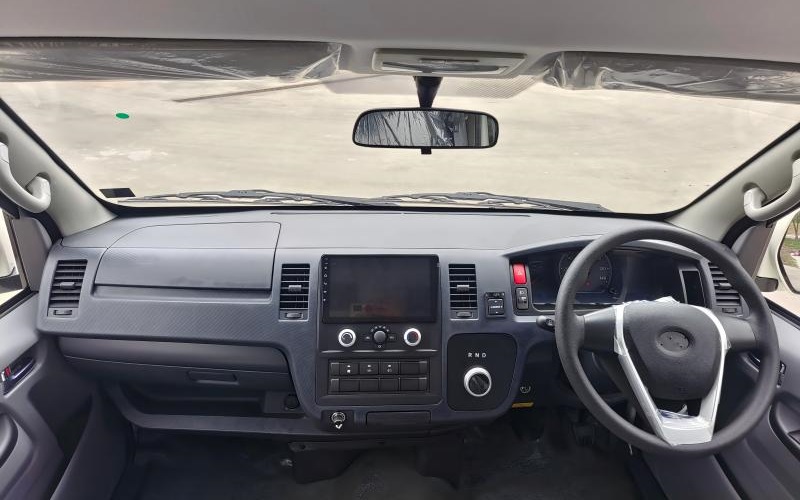

仪表台
Instrument panel | 新款仪表台
New dashboard | ● |
旋钮换挡
Rotary knob shift | 旋钮换挡
Rotary knob shift | ● |
内后视镜
Interior rearview mirror | 防眩目内后视镜
Anti glare interior rearview mirror | ● |
中门踏步
Middle door step | 组合踏步+踏步灯
Combination step+step light | ● |
尾门压条
Tailgate pressure strip | 豪华压条
Luxury pressure strip | ● |
中央置物盒
Central storage box | 多功能中央置物盒
Multi functional central storage box | ● |
辅助上车扶手
Auxiliary boarding armrest | 正副司机和中门上车扶手
The driver and co driver, as well as the armrest on the middle door, will board the vehicle | ● |
安全锤
Safety hammer | 应急标贴安全锤2个
2 emergency label safety hammers | ● |
灭火器
Fire Extinguisher | 2kg 1个
2kg per piece | ● |
点烟器
The cigarette lighter | 前点烟器(1个)
Front cigarette lighter (1 unit) | ● |
电源(电瓶)
Power supply (battery) | 免维护铅酸电池
Maintenance free lead-acid battery | ● |
遮阳板
Sun visor | 正副驾驶座遮阳板
Sun visors for the driver and passenger seats | ● |
座椅
chair | 座椅布置
Seat arrangement | 14Seats（2+2+3+3+4） | ● |
面料
Fabric | 平织布
Flat woven fabric | — |
仿皮
imitation leather | ● |
影音系统
Audiovisual system | 收音机+USB
Radio+USB | MP5+USB
MP5+USB | ● |
倒车雷达
PDCParking Distance Control | 倒车蜂鸣
Reverse buzzer | ● |
立体声音箱
Stereo speakers | 音箱数量
Number of speakers | 2个 |
防盗系统
Anti theft system | 门未关严报警
Alarm if the door is not tightly closed | 门未关严报警
Alarm if the door is not tightly closed | ● |
锁止防盗
Lock and prevent theft | 方向管柱锁止防盗
Directional column locking anti-theft | ● |
空调系统
air conditioning system | 空调
air conditioner | 前空调
Front air conditioning | ● |
后空调（双侧风道）
Rear air conditioning (double-sided air ducts) | ● |
暖风
warm wind | 前暖风(含除霜器)
Front warm air (including defroster) | ● |
后暖风(地板式)
Rear warm air (floor type) | — |
操作方便性
Ease of operation | 前门车窗
Front door window | 手动车窗
Manual car window | ○ |
电动车窗
Electric car window | ● |
门锁控制
Door lock control | 中控门锁(带2把遥控钥匙)
Central control door lock (with 2 remote keys) | ● |
按钮背光开关
Button backlight switch | 亮化开关
Lighting switch | ● |
加速油门控制
Acceleration throttle control | 电子油门踏板
Electronic accelerator pedal | ● |
尾门内开启
The tailgate is open inside | 尾门内开启
The tailgate is open inside | ● |
| 说明： | 1.“—”表示无此配置，“●”表示标配，“○”表示可选配置。 |
|
|
