基本参数
Basic Parameter | 外形尺寸 ：长×宽×高(mm)
Overall demension(LxWxH mm) | 5260 *1940 *1850 |
轴距
Wheelbase（mm) | 3300 |
轮距（前/后）（mm）
Tread（Front/rear）（mm） | 1540/1560 |
前后轴荷
Front / rear axle load | 1520/1705 |
前悬/后悬(mm)
Front suspension / rear suspension(mm) | 810/1150 |
额定载客（人）
Rated passenger | 5 |
最小转弯半径（m)
Minimum turning radius ( m ) | 7.25 |
接近角/离去角(°)
Approach angle / angle of departure (°) | 25.2/20 |
最高车速(km/h)
Max speed(km/h) | 90 |
最小离地间隙（mm）
Min.grondclearance | 220 |
总质量（kg）
Total quality（kg） | 3390 |
整备质量(kg)
Kerb weight (kg) | 2100 |
动力配备
Power
Parameter | 驱动电机型号
Drive motor model | TZ210XS-M050-09 |
驱动电机额定扭矩/转速/功率(N.m / r/Min /KW)
Rated torque / speed / power of drive motor(N.m / r/Min /KW) | 140/6000/50 |
驱动电机峰值扭矩/转速/功率（N.m / r/Min /KW）
Peak torque / speed / power of drive motor(N.m / r/Min /KW) | 300/12000/105 |
储能装置类型
Type of energy storage device | 磷酸铁锂电池
Lithium iron phosphate battery |
储能装置生产企业/型号
Enterprise / model of energy storage device | 中航锂电 386.4V 163Ah
Avic lithium 386.4V 163Ah |
总储电量
Total electricity | 62.98kWh |
续驶里程(工况法）
Full charge endurance | 405km |
电池智能热管理
Intelligent battery thermal management | 水冷电池
Water-cooled battery |
底盘
Chassis | 驱动方式
Drive mode | 后轮驱动
Rear drive |
转向系统
Steering system | 液压助力转向
Hydraulic power steering |
前悬架/后悬架
Front suspension / rear suspension | 独立悬架/钢板弹簧
Independent suspension/Leaf spring |
制动系统
Braking system | 双回路液压制动系统
Double - loop hydraulic braking system |
轮胎规格
Tyre size | 265/65R17 |
| 标准配置 Standard specification |
安全配备
Safety Parameter | 主驾安全气囊
Main driver airbags | ● |
副驾安全气囊
The co-pilot airbags | ● |
| ABS | ● |
行车记录仪
Tachograph | ○ |
倒车雷达
Reverse radar | ● |
倒车影像
Reverse video | ● |
可溃式转向管柱
Ulcerate steering column | ● |
全车三点式安全带
Three-point seat belt | ● |
前排安全带未系提示
Prompt of front seat belt | ● |
车内中控锁
Inner central lock | ● |
中门儿童锁
Middle - door lock | ● |
车门未关提醒系统
Reminding system of unclosed door | ● |
高位刹车灯
High mount brake lamp | ● |
后挡风玻璃除霜功能
Defrosting function of rear windscreen | — |
舒适配备
Comfort

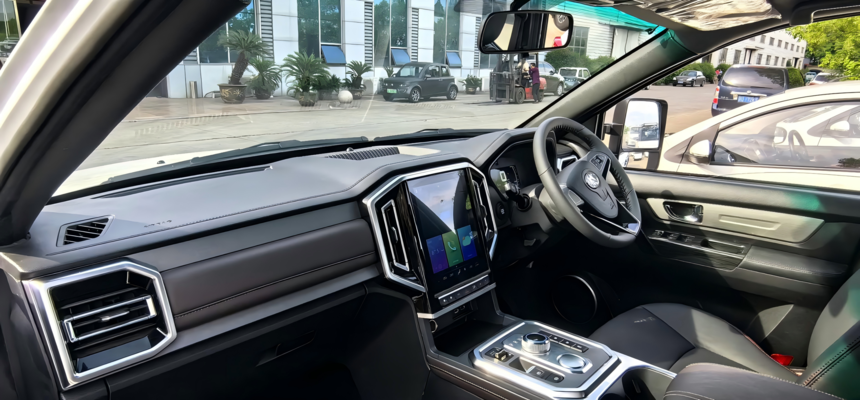

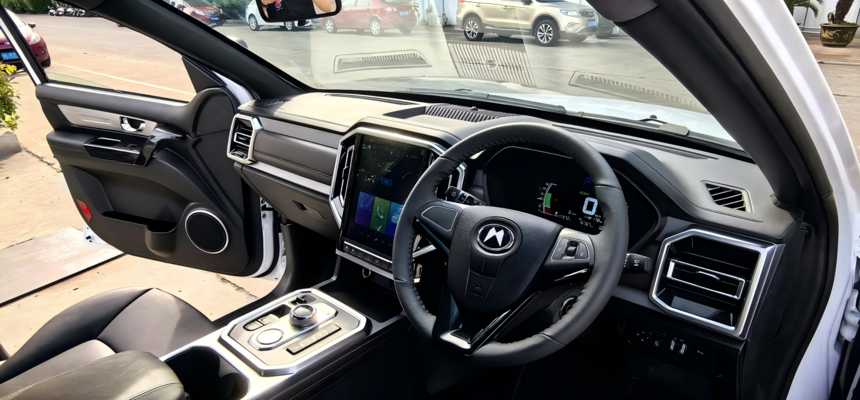

Parameter | 液晶电子仪表
Liquid crystal electronic instrument | ● |
10寸车载信息娱乐系统
10“on-board information entertainment system screen | ● |
电子旋转换档钮
Electronic rotary shift | ● |
防眩目室内镜
Anti-dazzling indoor mirror | ● |
一键启动
A key to start | ● |
遥控中控锁
Remote central locking | ● |
四门电动车窗
Four-door power windows | ● |
可调角度方向盘
Adjustable steering wheel | ● |
可拆卸式货箱顶盖
Removable case cover | ● |
车载220V充电机
On-board charger of 220 v | ● |
顶置眼镜盒
Overhead glasses case | ● |
自动空调
Automatic air conditioner |
|
豪华侧踏板
Luxury side pedal | ● |
真皮座椅
Leather seat | ○ |
豪华中网
Luxury grille | ● |
主驾驶座椅调节
Main driving adjustable seat | 4向手动
4-Direction Manual |
副驾驶座椅调节
Co-pilot adjustable seat | 4向手动
4-Direction Manual |
舵向
rudder direction | 左舵/右舵
LHD/RHD |
充电时长
Charging time | 快充2h/慢充10h
Quick charging for 2 hours/ Slow charging for 10 hours |
